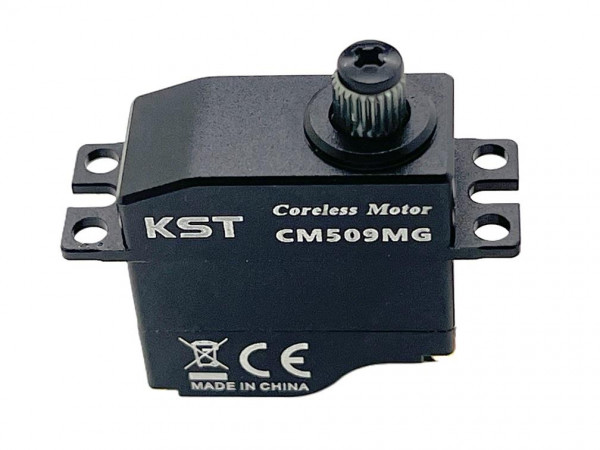

Produktinformationen “KST CM509MG V6.0 6.0kgf.cm@8,4V”
KST CM509MG Technische Details:
Rated Voltage: DC7.4V
Voltage Range: DC4.8V-8.4V
Stalling Torque: 3.6Kgf.cm@4.8V
4.8Kgf.cm@6.0V
5.5Kgf.cm@7.4V
6.0Kgf.cm@8.4V
Speed: 0.13sec/60°@4.8V
0.11sec/60°@6.0V
0.09sec/60°@7.4V
0.08sec/60°@8.4V
Stalling Current: 0.95A@4.8V
1.15A@6.0V
1.35A@7.4V
1.60A@8.4V
Working Frequency: 1520us/333Hz
Default Travel Angle: ±50° =100° Total
Temperature Range: -10?……+65?
Soft Start: Yes
Programmable: Yes
Motor Type :Coreless Motor
Case Material: Aluminum Alloy
Gear Set Material: Metal Gear / Output Shaft AI7075
Position Sensor: Potentiometer
Ball Bearing: 2BB
Case Dimensions:23mm*11mm*24mm±0.2mm
Weight:15g±10%
